Product Summary

The ams1117-adj is a 0.8A adjustable/fixed low dropout linear regulator. The ams1117-adj has been optimized for low voltage where transient response and minimum input voltage are critical. Applications of the include: High efficiency linear regulators, Post regulators for switching supplies, Battery chargers, 12V to 5V linear regulators and Motherboard clock supplies.

Parametrics

ams1117-adj absolute maximum ratings: (1) maximum input voltage Vin: 18V; (2) power dissipation PD: internally limited; (3) operating junction temperature range Tj: 150°C; (4) storage temperature range Tst: -65 to +150°C.

Features

ams1117-adj features: (1) Low dropout voltage; (2) Load regulation: 0.2% typical; (3) Optimized for Low Voltage; (4) On-chip thermal limiting; (5) Standard SOT-89 packages; (6) Three-terminal adjustable or fixed low dropout 1.2V, 1.5V, 1.8V, 1.9V, 2.5V, 3.3V, 5V Regulators.

Diagrams

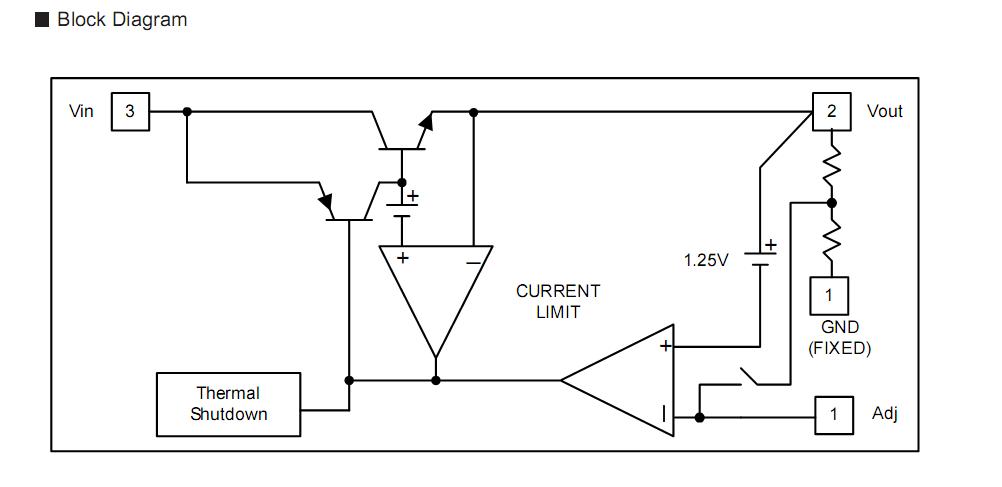

ams1117-adj block diagram
