Product Summary

The ADC0831CCWMX is an 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The differential analog voltage input of the ADC0831CCWMX allows increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input of the can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.

Parametrics

ADC0831CCWMX absolute maximum ratings: (1) Current into V+: 15mA; (2) Supply Voltage, Vcc: 6.5V; (3) Voltage, Logic Inputs: -0.3 to Vcc +0.3V; Analog inputs: -0.3 to Vcc +0.3V; (4) Input Current per Pin: ±5mA, Package: ±20mA; (5) Storage Temperature: -65 to +150°C; (6) Package Dissipation: 0.8W (at TA=25°C(Board Mount) ; (7) Lead Temperature (Soldering 10 sec.) : 260°C; (8) PLCC Package: 215°C, Vapor Phase (60 sec.) : 220°C; (9) ESD Susceptibility: 2000V.

Features

ADC0831CCWMX features: (1) TI MICROWIRE Compatible!Direct Interface to COPS Family Processors; (2) Operates Ratiometrically or with 5 V Voltage DC Reference; (3) No Zero or Full-Scale Adjust Required; (4) Remote Operation with Serial Digital Data Link; (5) TTL/MOS Input/Output Compatible; (6) 0.3 in. Standard Width, 8-, 14- or 20-Pin PDIP Package; (7) 0.3 in. Standard Width, 8-, 14- or 20-Pin PDIP Package; (8) SOIC Package.

Diagrams

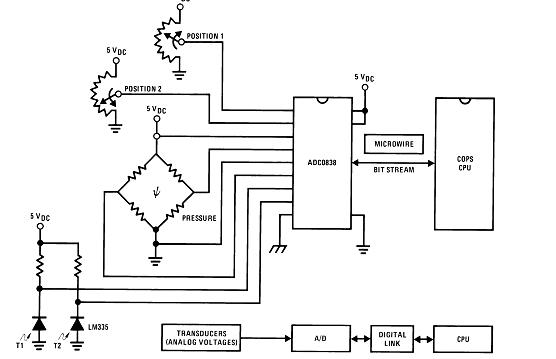

ADC0831CCWMX Circuit
