Product Summary
The aat3110igu-5.0-t1 ChargePump is a member of AnalogicTech Total Power Management IC (TPMI) product family. It is a MicroPower switched capacitor voltage converter that delivers a regulated output. No external inductor is required for operation. Using three small capacitors, the aat3110igu-5.0-t1 can deliver up to 100mA to the voltage regulated output. The aat3110igu-5.0-t1 features very low quiescent current and high efficiency over a large portion of its load range, making this device ideal for battery-powered applications. Furthermore, the combination of few external components and small package size keeps the total converter board area to a minimum in space-restricted applications. The aat3110igu-5.0-t1 operates in an output regulated voltage doubling mode. The regulator uses a pulse skipping technique to provide a regulated output from a varying input supply. The aat3110igu-5.0-t1 contains a thermal management circuit to protect the device under continuous output short-circuit conditions. It is ideal for: (1)Cellular Phones; (2)Digital Cameras; (3)Handheld Electronics; (4)LED/Display Backlight Driver; (5)LEDs for Camera Flash; (6)PDAs; (7)Portable Communication Devices.
Parametrics
aat3110igu-5.0-t1 absolute maximum ratings: (1)VIN to GND: -0.3 to 6 V; (2)VOUT to GND: -0.3 to 6 V; (3)SHDN to GND: -0.3 to 6 V; (4)Output to GND Short-Circuit Duration: Indefinite; (5)Operating Junction Temperature Range: -40 to 150℃; (6)Maximum Soldering Temperature (at leads, 10 sec): 300℃; (7)ESD Rating2 — HBM: 2000 V.
Features
aat3110igu-5.0-t1 features: (1)Step-Up Voltage Converter; (2)Input Voltage Range: 2.7V to 4.5V; (3)MicroPower Consumption: 13μA; (4)Regulated 5V, 4.5V ±4% Output; (5)5V Output Current: 100mA with VIN ≥ 3.0V, 50mA with VIN ≥ 2.7V; (6)4.5V Output Current: 100mA with VIN ≥ 3.0V, 50mA with VIN ≥ 2.7V; (7)Peak Current 250mA for 100ms; (8)High Frequency 750kHz Operation; (9)Shutdown Mode Draws Less Than 1μA; (10)Short-Circuit/Over-Temperature Protection; (11)2kV ESD Rating; (12)SC70JW-8 or SOT23-6 Package.

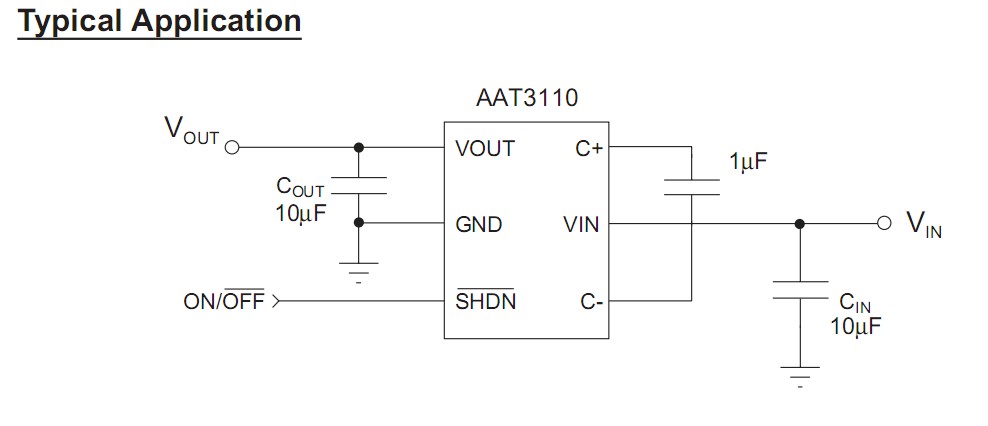

Diagrams
