Product Summary
The X9241AWS integrates four digitally controlled potentiometer (XDCP) on a monolithic CMOS integrated microcircuit. The X9241AWS is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. The X9241AWS can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
Parametrics
X9241AWS absolute maximum ratings: (1)Temperature under bias : –65 to +135°C; (2)Storage temperature : –65 to +150°C; (3)Voltage on SCK, SCL or any address input with respect to VSS: –1V to +7V; (4)Voltage on any VH/RH, VW/RW or VL/RL referenced to VSS: +6V/-4V; (5)Lead temperature (soldering, 10 seconds): 300°C; (6)IW (10 seconds): ±6mA.
Features
X9241AWS features: (1)Four potentiometers in one package; (2)2-wire serial interface; (3)Register oriented format; (4)Terminal Voltages: +5V, -3.0V; (5)Cascade resistor arrays; (6)Low power CMOS; (7)High Reliability; (8)16-bytes of nonvolatile memory; (9)3 resistor array values; (10)Resolution: 64 taps each pot; (11)20-lead plastic DIP, 20-lead TSSOP and 20-lead SOIC packages.

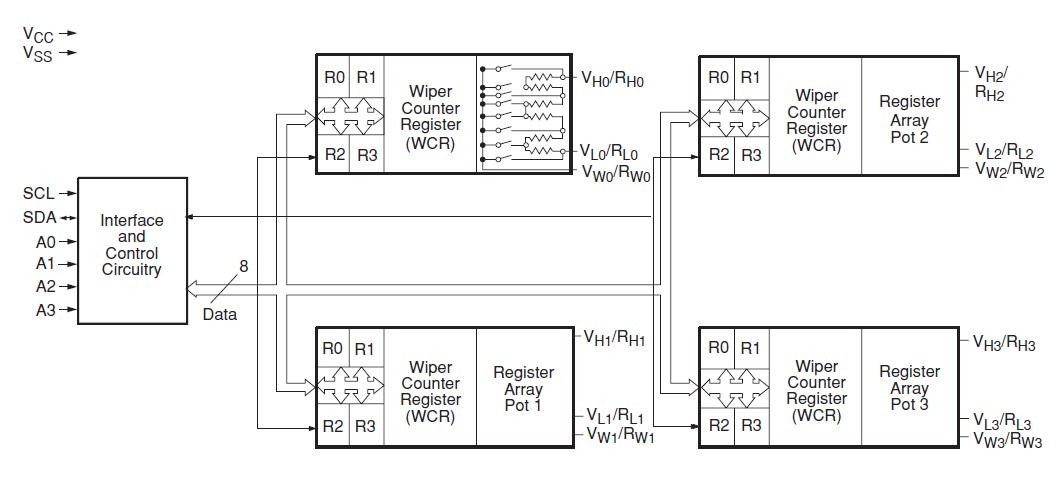

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
X9241AWS |
IC DCP QUAD 10K 64TP 20SOIC |
Data Sheet |
Negotiable |
|
||||||||
X9241AWSI |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
X9241AWSIT1 |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
X9241AWSIT2 |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
X9241AWSIZ |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
|
|
||||||||
X9241AWSIZT1 |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
|
|
||||||||
X9241AWST1 |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
X9241AWST2 |
IC XDCP QUAD 4X10K EE 20-SOIC |
Data Sheet |
Negotiable |
|
