Product Summary
The TPS793285DBVR is a low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar wafer chip scale and SOT23 packages. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low-noise features as well as the fast response time.
Parametrics
TPS793285DBVR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: -0.3 V to 6 V; (4)ESD rating, HBM: 2 kV; (5)ESD rating, CDM: 500 V; (6)Junction temperature range, DBV package: -40℃to 150℃; (7)Junction temperature range, YEQ package: -40℃ to 125℃; (8)Storage temperature range: -65℃ to 150℃.
Features
TPS793285DBVR features: (1)200-mA RF Low-Dropout Regulator With Enable; (2)High PSRR (70 dB at 10 kHz); (3)Ultralow-Noise; (4)Fast Start-Up Time; (5)Stable With a 2.2-μF Ceramic Capacitor; (6)Excellent Load/Line Transient Response; (7)Very Low Dropout Voltage; (8)5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YEQ) Packages.

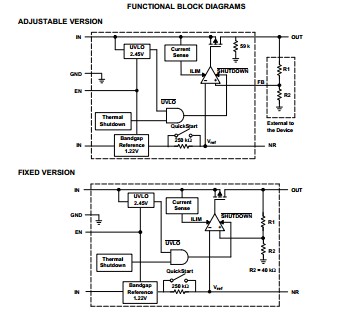

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS793285DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA 2.85V Hi PSRR |
Data Sheet |
|
|
||||||||||||
|
TPS793285DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 200mA |
Data Sheet |
|
|
||||||||||||
