Product Summary
The SP5301CN/TR is a half-duplex Universal Serial Bus (USB) differential transceiver that interfaces with the USB Serial Interface Engine (SIE). The SP5301CN/TR is designed to allow 3.3V or 5.0V standard and programmable logic to interface with the physical layer of the Universal Bus. The USB protocol can support multiple connections for up to 127 physical devices composed of many diverse functions. It is capable of transmitting and receiving serial data at both full speed (12Mbps) and low speed (1.5Mbps) data rates. Implementation of the Serial Interface Engine along with the USB transceiver allow the designer to make flexible USB compatible devices with widely available logic components. The SP5301CN/TR is specifically geared towards low-cost USB solutions for the PC peripheral market.
Parametrics
SP5301CN/TR absolute maximum ratings: (1)VCC: -0.5V to +6.5V; (2)IGND, ICC (DC VCC or GND current): +100mA; (3)Input Current and Voltages: IIK (DC input diode current at VI < 0): -50mA; (4)Input Current and Voltages: VI (DC input voltage, Note 1): -0.5 to +6.5V; (5)Input Current and Voltages: VI/O (DC input voltage range, I/O): -0.5V toVC C 0.5V; (6)Output Currents and Voltages: IOK (DC output diode current where VO > VCC or VO < 0): +50mA; (7)Output Currents and Voltages: VO (DC output voltage), Note 1: -0.5V to (VCC + 0.5V); (8)IO (DC output source or sink current for; (9)VP/VM/RCV/RERR/RSEO pins,VO = 0 to VCC): +15mA; (10)IO (DC output source or sink current for D+/D- pins, VO = 0 to VCC: +50mA; (11)Storage Temperature: -65°C to +150°C; (12)Ptot (Power dissipation per package): 1000mW.
Features
SP5301CN/TR features: (1)Utilizes digital inputs and outputs to transmit and receive USB cable data; (2)Supports 12Mbps "Full Speed" and 1.5Mbps "Low Speed" serial data transmission; (3)Compatible with the VHDL "Serial Interface Engine" from USB developers conference; (4)Hysteresis oVP and VM Function; (5)Ease of use for PC peripheral expansion; (6)Protocol flexibility for mixed-mode isochronous data transfers and asynchronous messaging; (7)Available i14 pi0.15" SOIC package; (8)Rail to Rail receiver commomode input range, 20mV typical receiver sensitivity; (9)Low Power; 20 nA iSUSPEND mode; (10)Enhanced versioof the PDIUSBP11.

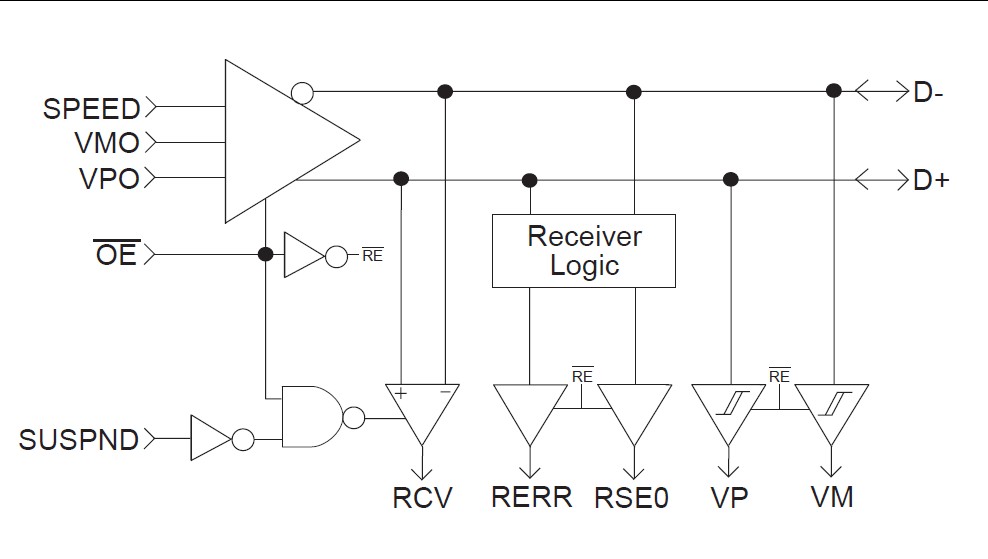

Diagrams
