Product Summary

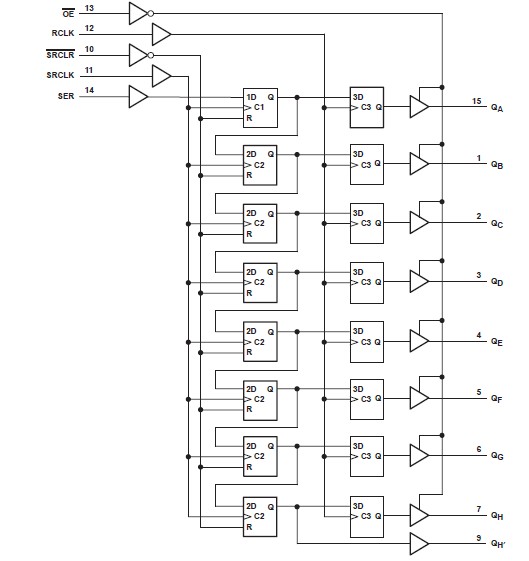

The SN74AHC595PWR is an 8-bit shift register with 3-state output register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage registers. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and a serial output for cascading. When the output-enable (OE) input is high, all outputs, except QH, are in the high-impedance state.

Parametrics

SN74AHC595PWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 7 V; (3)Output voltage range, VO (see Note 1): -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±75 mA; (8)Package thermal impedance, θJA (see Note 2): D package: 73°C/W; (9)Package thermal impedance, θJA (see Note 2): DB package: 82°C/W; (10)Package thermal impedance, θJA (see Note 2): N package: 67°C/W; (11)Package thermal impedance, θJA (see Note 2): NS package: 64°C/W; (12)Package thermal impedance, θJA (see Note 2): PW package: 108°C/W; (13)Storage temperature range, Tstg: -65°C to 150°C.

Features

SN74AHC595PWR features: (1)Operating Range 2-V to 5.5-V VCC; (2)8-Bit Serial-In, Parallel-Out Shift; (3)Shift Register Has Direct Clear; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).
