Product Summary
The 73M2901-32IH is a single-chip modem that combines all the controller (DTE) and data pump functions necessary to implement an intelligent V.22bis data modem. The 73M2901-32IH is based on TDK Semiconductor’s implementation of the industry standard 8032 microcontroller core with a proprietary multiply and accumulate (MAC) coprocessor; Sigma- Delta A/D and D/A converters; and an analog front end. The ROM and RAM necessary to operate the modem are contained on the device. Additionally, the 73M2901-32IH provides an on-chip oscillator and Hybrid driver.
Parametrics
73M2901-32IH absolute maximum ratings: ((1)Supply Voltage: -0.5V to +7.0V; (2)Pin Input Voltage: -0.5V to VPD + 0.5V; (3)Storage Temperature: -55°C to 150°C.
Features
73M2901-32IH features: (1)Low overall system chip count. True one chip solution for embedded systems; (2)Low operating power; (3)Internal ROM and RAM for normal operation; (4)On chip optional hybrid driver; (5)Designed for +3.15 through +3.6 volts.

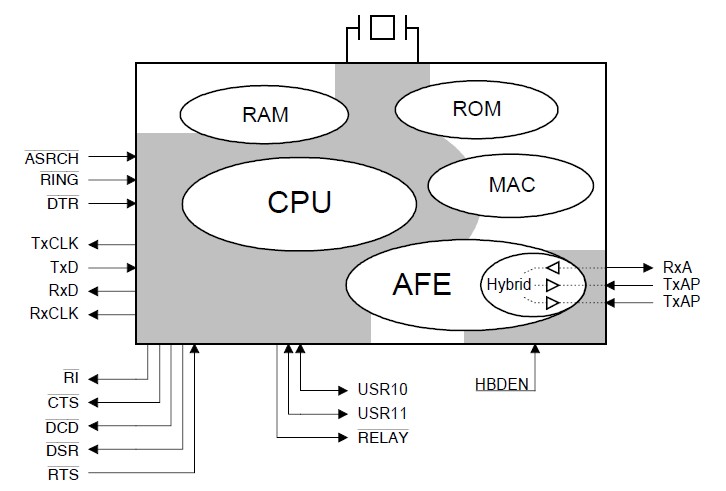

Diagrams
