Product Summary
The ncp1582dr2g is a low cost PWM controller. The ncp1582dr2g is designed to operate from a 5 V or 12 V supply. The ncp1582dr2g is capable of producing an output voltage as low as 0.8 V. This 8-pin device of the ncp1582dr2g provides an optimal level of integration to reduce size and cost of the power supply. Features include a 0.7 A gate driver and an internally set 350 kHz and a 300 kHz oscillator. The ncp1582dr2g also incorporates an externally compensated transconductance error amplifier and a programmable soft-start function. Protection features include short circuit protection (SCP) and under voltage lockout (UVLO). The ncp1582dr2g comes in an 8-pin SOIC package. The applications of the ncp1582dr2g include Graphics Cards, Desktop Computers, Servers / Networking, DSP and FPGA Power Supply, DC-DC Regulator Modules.
Parametrics
ncp1582dr2g absolute maximum ratings: (1)Main Supply Voltage Input, VCC: -0.3 V to 15 V; (2)Bootstrap Supply Voltage Input, BST: 30 V wrt/GND to -0.3 V; (3)Switching Node (Bootstrap Supply Return), PHASE: 24 V to 0.7 V; (4)High-Side Driver Output (Top Gate), TG: 30 V wrt/GND to -0.3 V; (5)Low-Side Driver Output (Bottom Gate), BG: 15 V to -0.3 V; (6)Feedback, FB: 5.5 V to -0.3 V; (7)COMP/DISABLE, COMP/DIS: 5.5 V to -0.3 V.
Features
ncp1582dr2g features: (1)Input Voltage Range from 4.5 V to 13.2 V; (2)350 kHz Internal; (3)Oscillator; (4)Boost Pin Operates to 30 V; (5)Voltage Mode PWM Control; (6)0.8 V ±1.5% Internal Reference Voltage; (7)Adjustable Output Voltage; (8)Programmable Soft-Start; (9)Internal 0.7 A Gate Drivers; (10)80% Max Duty Cycle; (11)Input UVLO; (12)RDS(on) Current Sensing for Short Circuit Protection; (13)These are Pb?Free Devices.

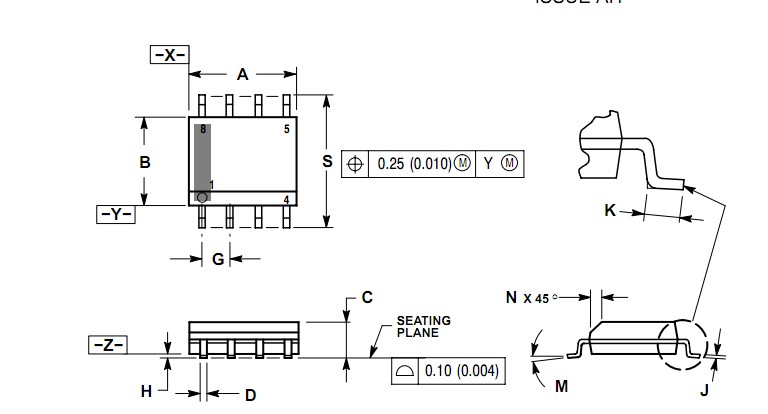

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1582DR2G |
ON Semiconductor |
Voltage Mode PWM Controllers ANA BUCK CONTROLLER |
Data Sheet |
Negotiable |
|
||||
 |
NCP1582DR2GEVB |
ON Semiconductor |
Power Management IC Development Tools ANA SWITCH REG EVAL BOARD |
Data Sheet |
Negotiable |
|
||||
