Product Summary

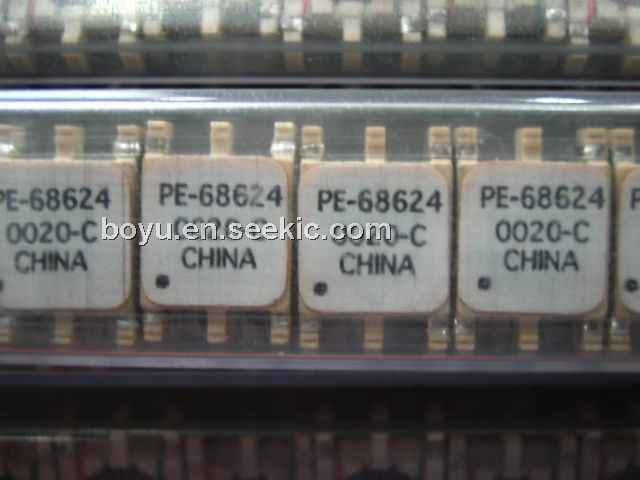

The PE-68624 is a Surface Mount Common Mode Choke Suited for LAN and Telecom Applications.

Parametrics

PE-68624 absolute maximum ratings: (1)No. of Ports: 1; (2)Primary Inductance OCL (μH MIN): 47; (3)DCR (Ω MAX): 0.40.

Features

PE-68624 features: (1)Reduces radiated EMI emissions; (2)Filters common mode noise for EMI reduction; (3)Common mode attenuation from 100 kHz to 1 GHz; (4)RoHS peak reflow solder temperature rating 245℃.

Diagrams

PE-68624 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE-68624
PE-68624
Pulse
Common Mode Inductors (Chokes) 47mH 2 LINES
Data Sheet
0-195: $1.64
195-500: $1.51
500-1000: $1.42
1000-2500: $1.31
PE-68624NL
PE-68624NL
Pulse
Common Mode Inductors (Chokes) 47mH 2 LINES
Data Sheet
0-1: $2.14
1-10: $1.72
10-100: $1.37
100-500: $1.26
PE-68624NLT
PE-68624NLT
Pulse
Common Mode Inductors (Chokes) INDUCTOR
Data Sheet
0-1: $2.86
1-10: $2.42
10-100: $2.06
100-500: $1.78
PE-68624T
PE-68624T
Pulse
Common Mode Inductors (Chokes) IND
Data Sheet
0-605: $2.02
605-1000: $1.78
1000-1500: $1.78
1500-2500: $1.62
