Product Summary

The ma21d3800l is a schottky barrier diode.


Parametrics

ma21d3800l absolute maximum ratings: (1)Reverse voltage VR: 30 V; (2)Maximum peak reverse voltage VRM: 30 V; (3)Forward current (Average)IF(AV): 1.0 A; (4)Non-repetitive peak forward surge current IFSM: 20 A; (5)Junction temperature Tj: 125 ℃; (6)Storage time Tstg: –55 to +125 ℃.

Features

ma21d3800l features: (1)IF(AV)= 1 A rectification is possible; (2)Low forward voltag VF; (3)High non-repetitive peak forward surge voltage.

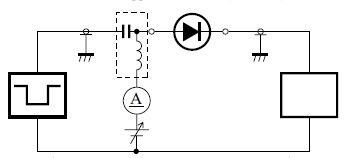

Diagrams

ma21d3800l pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

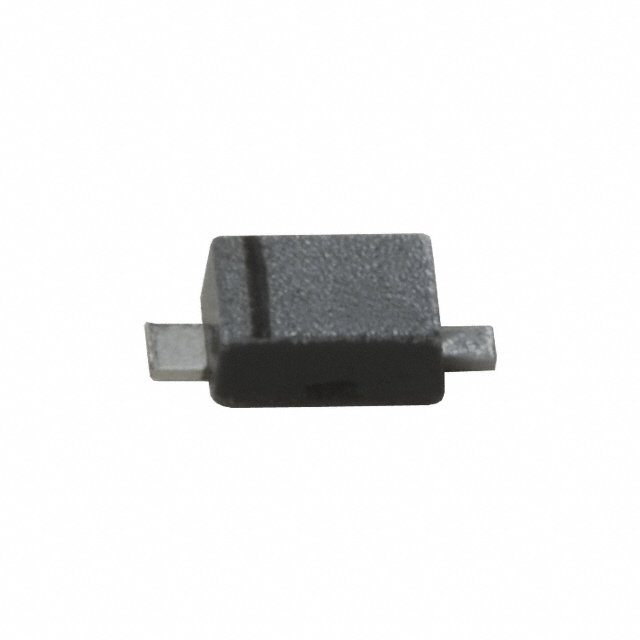

MA21D3800L
MA21D3800L

DIODE SCHOTTKY 30V 1A SMINI-2P
Data Sheet
Negotiable
