Product Summary

The APM2324AC-TRL is an N-Channel Enhancement Mode MOSFET. The applications of the APM2324AC-TRL include Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.

Parametrics

APM2324AC-TRL absolute maximum ratings: (1)Drain-Source Voltage: 20 V; (2)Gate-Source Voltage: ±10 V; (3)Continuous Drain Current: 3 A; (4)Diode Continuous Forward Current: 1 A; (5)Maximum Junction Temperature: 150 ℃; (6)Storage Temperature Range: -55 to 150 ℃; (7)Maximum Power Dissipation: 0.3 W; (8)Thermal Resistance-Junction to Ambient: 150 ℃/W.

Features

APM2324AC-TRL features: (1)Super High Dense Cell Design; (2)Reliable and Rugged; (3)Lead Free Available (RoHS Compliant).

Diagrams

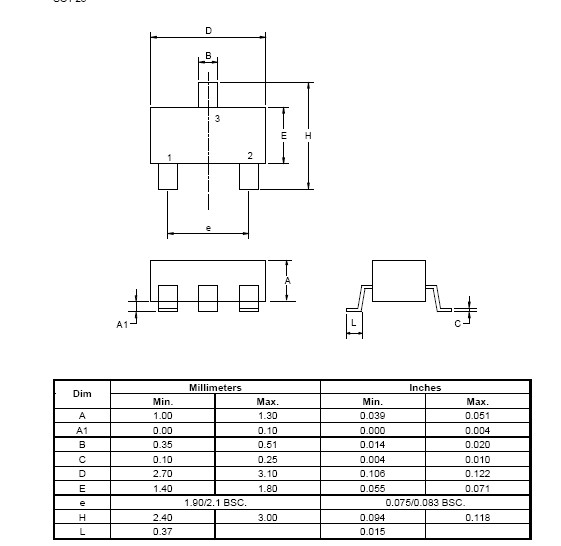

APM2324AC-TRL dimension
